Characteristics and Usage:

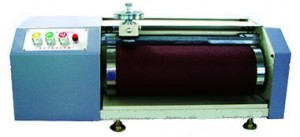

DIN abrasion tester, is used for testing wearing resistance of rubber tire, rubber shoes and rubber belt to identify quality of rubber products. Rubber materials carry on friction with gauze under the effect of load during test, in order to test abrasion value of sample within the set range. It complies with GB9867, ISO4649 and DIN53516 requirements.

Technical Parameters:

   1.      Pressure of Sample(N): 2.5 5 10

   2.      Abrasion Stroke: 40 or 20m

   3.      Roller Speed: 40±1r/min

   4.      Roller Diameter: 150±0.2mm

   5.      Sample Diameter: 16±0.2mm

   6.      Outside Diameter Size: 700×340×300mm
