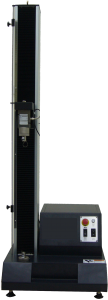

QC-H35 Electromechanical Universal Testing Machine (5kN)

Force Capacity: 10N,20N,50N,100N,200N,500N,1kN,5kN

QC-H35 Series electromechanical tabletop single column test machines serve high elongation applications such as rubber, plastic film, elastomer, glues, adhesive and medical applications. Configurations are available from 10N to 5 kN  force ratings with test speeds up to 1000 mm/min. Controllers ranging from simple to use standalone controllers to fully flexible PC based controllers.

Features & Benefits

  • Single column vertical load frame with either stand-alone or computerized controllers.
  • Wide range of load cells to serve a variety of applications.
  • Load cell accurate from 100 to 1 % of rating. Load accuracy +/- 0.5% of indicated load within load cell rated force range.
  • 1000 samples per second data acquisition rate on load, position, and strain channels.
  • Three choices of Controllers: TouchPad Standalone, TouchPad Computerized and Fully Computerized Controller
  • Wide range of compatible optional accessories including tensile grips, compression and bend fixtures, environmental chambers, extensometers, etc.
  • 12 month warranty and customer support services.

Specifications

Force
Frames rated 5 kN to 1000 mm/min
Speed at Full Load
Series QC-H35 frame rated 1000 mm/m
Column Clearance
80 mm
Travel
Offers a travel range from 950 mm to 1200 mm

Controller

A2 controllers feature constant rate of extension (constant speed) and constant load control for proof tests. A2 controllers capture and display test data and are capable of stand alone operation without a computer. Computerized software based operation is available with an optional software program running on a PC. View the Documents tab for more information.
