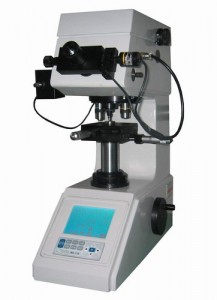

MODEL 300HVS-5 DIGITAL DISPLAY
VICKERS HARDNESS TESTER
Feature & Use
- RS232 data interface, built-in printer
- Hardness conversion between different hardness scales
- Automatic testing process
- Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
It’s suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.
Measuring range: 5-3000HV
Test force: 1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N
(0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5kgf)
Hardness scale: HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5
Measuring accuracy of micrometer: ±0.2μm
Resolution of micrometer: 0.01μm
Test force dwelling time: 5~99 seconds (1 second for incremental quantity)
Objective lens: 10X (for observation), 40X (for measurement)
Ocular lens: 10X
Total magnification: 100X (for observation), 400X (for measurement)
Range of measurement: 800um
Max. Height of specimen: 75mm
Depth of throat: 110mm
Size of XY coordinate worktable: 100×100mm
Travel of XY coordinate worktable: 25×25mm
Resolution of XY coordinate worktable: 0.01um
Optical source: 12V/20W
Power supply: 220V/110V, 50Hz/60Hz
Power consumption: ≤50W
Overall dimensions: 320×470×560mm
Weight: 58 kg
Coordinate anvil: 1 pc.
Thin shaft anvil (Ø 0.3- Ø 5mm): 1 pc.
Thin plate anvil: 1 pc.
Flat nose pliers: 1 pc.
Large V-notch anvil: 1 pc.
Small V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Vickers standardized block: 2 pcs.
Micro-Vickers standardized block: 1 pc.
CCD camera and image processing system
