Product information:

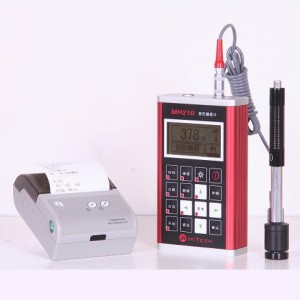

Model MH210 hardness tester is develop model of HL200, its in durable metal case, hardness scales are convertable among hardness units: HRB, HRC, HV, HB, HS, HL ;attachable thermal mini-printer, fast on-site print;software data and upperlower limits setting and sound alarm; large storage capacity.
Specifications:
|
Measuring Range |
HLD(170-960) |
|
Impact Derections |
up,down,horizontal,slanting up,slanting down |
|
Measuring materials |
steel and cast steel, cold work tool steel, stainless steel,grey cast iron, nodular cast iron,cast aluminium allorys,brass(coppper-zinc alloys), Bronze(copper-alluminium alloys/copper-tin alloys),wrought copper alloys |
|
Hardness scales |
Leeb, Brinell, Rockwell A,B,C, Vicker, Shore |
|
Display |
128*64 digital matrix LCD |
|
Memory |
500 group(32 every group) |
|
Work voltage |
3V( 2 AA alkaline battaries) |
|
Interface port |
RS232 |
|
Dimensions |
132mm*76mm*33mm |
|
Weight |
345g |
|
Continuous working period |
100 hours (with backlight off) |
Accuracy and repeatability of displayed value
|
No. |
Type of impact device |
Hardness value of Leeb standard hardness block |
Error of displyed value |
Reapeatability of displayed value |
|
1 |
D |
760±30HLD |
±6 HLD |
6HLD |
|
2 |
DC |
760±30HLD |
±6 HLDC |
6HLD |
|
3 |
DL |
878±30HLD |
±12 HLDL |
12HLDL |
|
4 |
D+15 |
766±30HLD |
±12 HLD+15 |
12HLD+15 |
|
5 |
G |
590±40HLD |
±12 HLG |
12HLG |
|
6 |
E |
725±30HLD |
±12 HLE |
12HLE |
|
7 |
C |
822±30HLD |
±12 HLC |
12HLC |
Standard Deliveries:
|
No |
Items |
Quantity |
|
1 |
Main unit |
1 |
|
2 |
D type impact device |
1 |
|
3 |
Test block with HLD value |
1 |
|
4 |
Cleaning brush |
1 |
|
5 |
Instruction manual |
1 |
|
6 |
Warranty card |
1 |
|
7 |
Carrying case |
1 |
|
8 |
Data Pro software |
1 |
|
9 |
Cables |
1 |
|
10 |
Batteries |
4 |
Optional Deliveries:
|
No |
Items |
Quantity |
|
1 |
Other types of cleaning brush |
1 |
|
2 |
Other types of impact devices |
6 |
|
3 |
Tool for install impact ball |
1 |
|
4 |
Other types of support ring |
1 |
|
5 |
Other types of impact ball/body |
1 |
|
6 |
Mini-printer |
1 |
