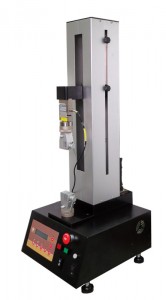

QC-H31 Electromechanical Universal Testing Machine (1kN)

Force Capacity: 10N,20N,50N,100N,200N,500N,1kN

QC-H31 Series electromechanical tabletop single column test machines serve high elongation applications such as rubber, plastic film, elastomer, glues, adhesive and medical applications. Configurations are available from 10N to 1 kN  force ratings with test speeds up to 1000 mm/min. Controllers ranging from simple to use standalone controllers to fully flexible PC based controllers.

Features & Benefits

  • Single column vertical load frame with either stand-alone or computerized controllers.
  • Wide range of load cells to serve a variety of applications.
  • Load cell accurate from 100 to 1 % of rating. Load accuracy +/- 0.5% of indicated load within load cell rated force range.
  • 1000 samples per second data acquisition rate on load, position, and strain channels.
  • Three choices of Controllers: TouchPad Standalone, TouchPad Computerized and Fully Computerized Controller
  • Wide range of compatible optional accessories including tensile grips, compression and bend fixtures, environmental chambers, extensometers, etc.
  • 12 month warranty and customer support services.

Specifications

Force – 0~1 kN
Speed at Full Load – 1500 mm/m
Column Clearance – 130 mm
Travel – Up to 450 mm

Controller

YY-K5A controllers feature constant rate of extension (constant speed) and constant load control for proof tests. YY-K5A controllers capture and display test data and are capable of stand alone operation without a computer. Computerized software based operation is available with an optional software program running on a PC. View the Documents tab for more information.
