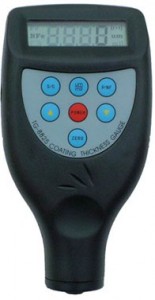

ctg8825

Description:

Function: TG-8825F (ferrous substrate) TG-8825N (non ferrous substrate) TG-8825FN (2 in 1, F & NF type)
Measuring principle: magnetic induction & eddy current
Measurement range
0200um/500um /1000um/2000um in built probe (integrated probe)
Resolution
0.1 um (under 100um) 1um (over 100um)
Accuracy: ±1
3%n or ±3um
Probe type recognition: Manual  (For TG-8825FN)
Measurement mode: single
Data output: RS232C interface (optional)
Power supply: 4×1.5V AAA(UM-4)battery
2 Shutdown models: manual / automatic
Dimension: 131x65x28mm



Application:
1. TG-8825F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-8825N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Standard Delivery of TG8825FN:
Main unit(1000um)                        1
F type probe                                  1
N type probe                                  1
F calibration base set                    1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                                1
Instruction manual                         1

Optional Accessories
Cable and software for RS-232C
