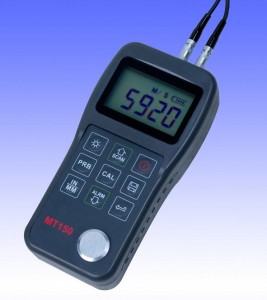

MT150 Ultrasonic Thickness Gauge

Product information:

Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.

Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..

Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).Specifications:







Measuring Range

0.75mm-300mm(in steel)

Sound Velocity

1000~9999 m/s

Resolution

0.1mm

Units

mm/inch (selectable)

Memory

20 groups (100 files / group)

Accuracy

± ( 0.5%Thickness+0.04 ) mm

Alarm

preset upper and lower limit

Work voltage

3V( 2 AA alkaline battaries)

Work mode

Single point and scan

Interface port

RS232

Dimensions

150mm*74mm*33mm

Weight

245g

Display

LCD with backlight

Continuous working period

100 hours (with backlight off)

Standard Deliveries:

No

Items

Quantity

1

Main unit

1

2

N05/90 probe

1

3

Couplant

1

5

Instruction manual

1

6

Warranty card

1

7

Carrying case

1

9

Cables

1

10

Batteries

4

Optional Deliveries:

No

Items

Quantity

1

N02 probe

1

2

N07 probe

1

3

NHT5 probe

1

4

N05 probe

1
