This tester is used for determining the Brinell, Rockwell and Vickers hardness of ferrous, non-ferrous metals and hard alloys. It can be applied in the factories, scientific research institutes, laboratories of institutes and colleges.

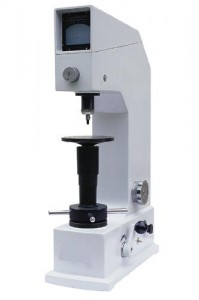

MODEL HBRV-187.5 BRINELL ROCKWELL

VICKERS HARDNESS TESTER


Specifications

   Measuring range: 4-450HBS, 20-88HRA, 20-100HRB,

                             20-70HRC, 200-1000HV

   Test force: 294.2, 306.5, 588.4, 612.9, 980.7, 1471, 1839N

                   (30, 31.25, 60, 62.5, 100, 150, 187.5kgf)

   Max. height of test piece: 200mm

   Depth of throat: 160mm

   Power supply: 220V or 110V AC, 50/60Hz

   Dimensions: 480 x 250 x 760mm

   Weight: approx. 120kg


Main accessories

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Diamond cone penetrator: 1 pc.

   Diamond pyramid penetrator: 1 pc.

   Steel ball penetrator: Φ1.588, Φ2.5, Φ5mm  1 pc. each

   Brinell standardized block: 1 pc.

   Rockwell standardized block: 5 pcs.

   Vickers standardized block: 1 pc.

   40X Readout microscope: 1 pc.
